Evolution Stainless Steel MK II - Oncam: Experts in 360-degree and 180-degree Video Technology Solutions

Evolution Stainless Steel MK II

Resilient, tough and elegant surveillance

The Evolution Stainless Steel camera range are available in 05MP and 12MP and are unique in the 360-degree video surveillance market – they have been specifically designed to meet the needs of those operating in demanding environments that must follow resilient and stringent regulations.

The casing is manufactured in grade 316 Stainless Steel, for maximum corrosion resistance. The IP66, IP67, IP68, IP69K / IK10+ ratings make the enclosure resistant to high pressure water jets, dust, and vandalism. The NEMA 4X and 6P types guarantee conformity with North American standards. The NSF certification and the HCV EU mark make it compliant with standards for commercial food equipment in North America as well as Europe.

All these features come in an elegant housing, making the Evo Stainless Steel fit for prestige architecture, where functionality doesn’t need compromise on innovation and perfomance.

Evolution 05 Stainless Steel:

EVO-05-SS2

Evolution 12 Stainless Steel:

EVO-12-SS2

Key features

IK10+ rating

The camera dome is IK10+ rated for maximum protection against vandalism. It can resist impacts of 40 joules, doubling the protection of an IK10 rated dome.

HCV EU Mark

Design and construction have been reviewed for cleanability to ensure that the range can be used in a HACCP controlled environment.

Premium Material

The housing is manufactured in electropolished 316 stainless steel, which offers great resistance to corrosion and rusting.

5MP and 12MP sensor

The camera uses a 05 or 12 megapixel sensor, which gives the flexibility of using the best resolution for any installation.

NSF Certified

The housing has been reviewed and certified by NSF International to NSF/ANSI Standard 169 – Special Purpose Food Equipment and Devices.

Environment Resistance

Its IP66, IP67, IP68 and IP69K ratings, as well as NEMA Type 4X and 6P, make the camera resistant to the most demanding environmental conditions.

Accessories

EVO Stainless Env Shield

Environmental Shield

OBE-20-SES

EVO Stainless Wall bracket

Pendant Arm

OBE-20-SPA

EVO Stainless Pendant mount adaptor

Pendant Mount Adaptor

OBE-20-SPM

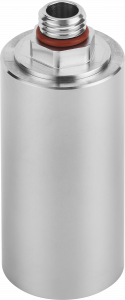

Conduit Adaptor

OBE-20-SCA

Corner Wall Mount

Corner Mount Bracket

OBE-20-SPC

EVO Stailness Pole mount

Pole Mount Bracket

OBE-20-SPP

Pipe Thread Adaptor

OBE-20-PTA

Resources

Ingress Protection Videos

The Evolution 05 and 12 Stainless Steel cameras make 360-degree imagery possible in demanding conditions. In addition to the other certifications available, the range is IP68 and IP69K rated to give Oncam’s best image quality in a resilient, tough yet elegant enclosure, enabling Total Situational Awareness in more challenging applications.
